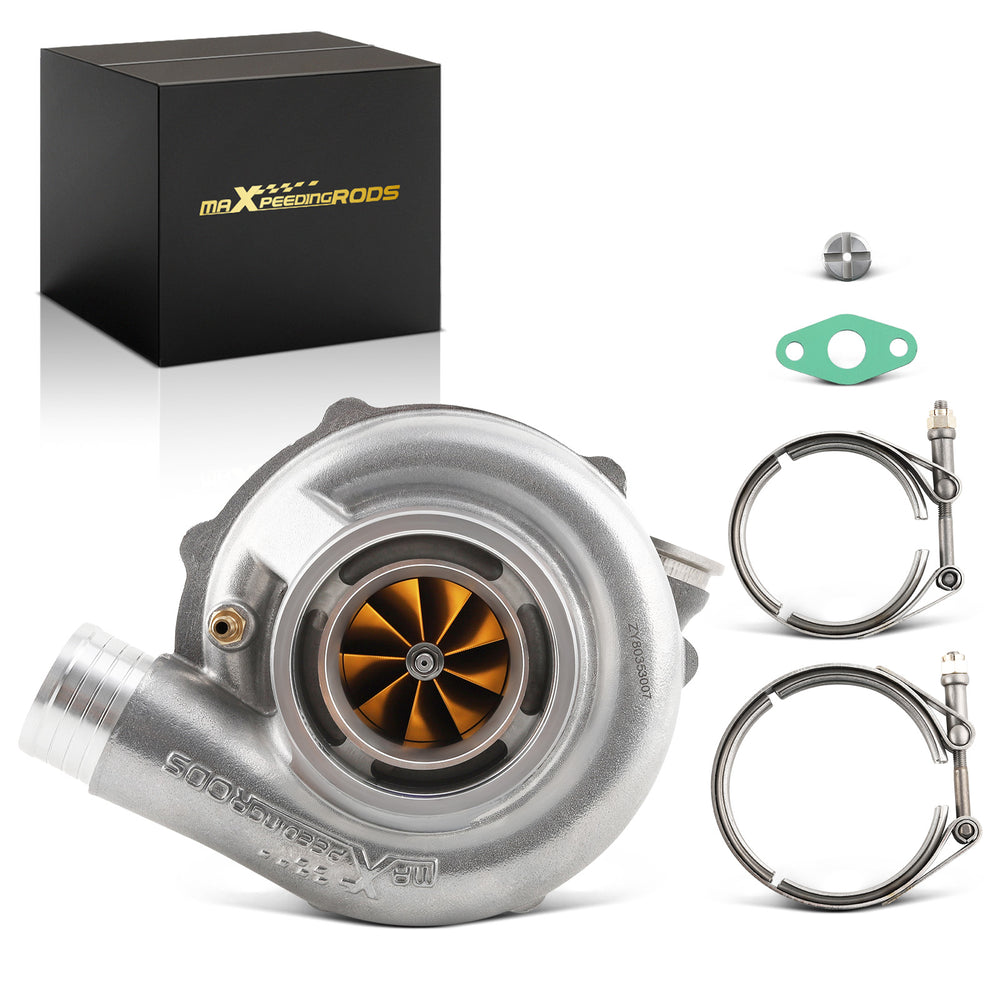

770HP Ball Bearing V-Band Billet Universal Turbo Turbocharger A/R 0.72 / 0.61
$644.00
770HP Ball Bearing V-Band Billet Universal Turbo Turbocharger A/R 0.72 / 0.61 from Maxpeedingrods.
- Product type: Turbos
- SKU: GT20354777-SD
Fitment and product details
- for 2.0L-3.5L engine displacements and capable of producing up to 770 horsepower
- Horsepower: 475HP-770HPDisplacement: 2.0L-3.5LCompressorCompressor Inducer: 57.6mmCompressor Exducer: 71.3mmCompressor Trim: 65Compressor A/R: 0.72Compressor Air Inlet : 4 InchCompressor Air Outlet: 2 InchTurbineTurbine Inducer: 60mmTurbine Exducer: 55mmTurbine Trim: 84Turbine A/R: 0.61Turbine Inlet : 3 Inch O.D. V-BandTurbine Outlet: 3.55 Inch (90mm)O.D. w/81mm centering ring V-BandCooling
- Type: Water+Oil CoolingBearing
- Type: Dual Ceramic Ball BearingOil Restrictor Size: 1mmOil Inlet Size: 7/16-24Oil Outlet Size: 13.5-2*M8*1.25Water Thread Size: M14*1.5
- Package included1x Turbocharger
- 1x Oil Gasket
- 2x V-BANDS
- 1x Restrictor
- 1x Manual
- 1x Brochure
- 1x StickerFeature*Product Material
- 1. Turbine housing :Stainless steel turbine housing - temperature resistant up to 1020C
Additional fitment details may apply. Please verify compatibility before ordering.
